W‑30 Jog Wheel & Encoder Replacements

S-50_S-550_ZONE

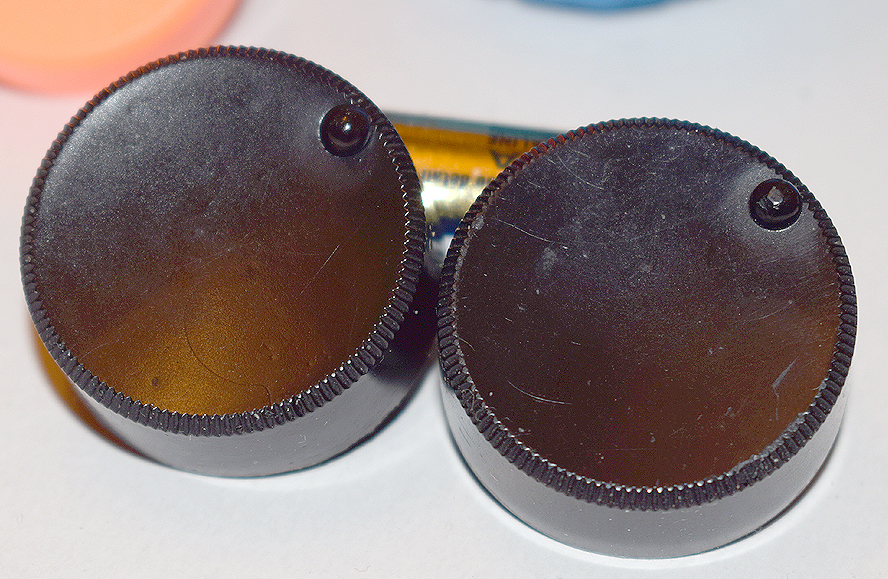

          Polymeric Resin Copy                                     Original
ENCODER

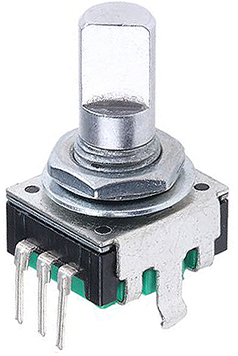

Bourns Encoder Replacement


COPY
            Polymeric Resin Copy                    Original
Roland, Roland, Roland. Ugh! Some of their products are phenomenal, solidly built and perfectly designed. Others are well... hmmm... what can I say? I really like my W‑30, but the durability factor of the jog wheel and rotary encoder is total crap. The D-shaft on the encoder and the jog wheel are both made of plastic. Yuck! The only good news about the W‑30 encoder is that it's a 24‑detent style which makes it easy to source a replacement (kind of)

W‑30 Cursor and Value Jog Wheels
Over the years, I have seen several posts online from W‑30 owners who are searching for replacement jog wheels. These jog wheels break easily because they are made of extremely thin plastic. Also, because of a loose fit, they have a tendency to fall off the encoder D‑Shaft and are lost or broken. The only known source for replacement jog wheels is to get some used ones from a cannibalized W‑30. Not a very cost effective method. I was curious to see if I could make my own jog wheels which look and work just like the originals. After several prototypes, I found that it is an extremely difficult process because of the way they are designed. The results are stellar! Although they are not factory quality, they are very, very close to the original wheels. Each wheel is different since they are handmade one‑at‑a‑time so sometimes bubbles and tiny gaps are trapped in the resin and sometimes the colors are slightly off within pairs. It's all part of the resin pouring process. These minor imperfections show up more often on the color wheels because the wheels with black dye hide everything. These tiny imperfections do not change the operation, just the appearance

For W‑30 owners in search of replacement wheels and encoders, I've put together a list of my experiments, suggestions for making your own wheels, some alternative wheels and how to buy replacement wheels and encoders. You can try and make your own but... it's very expensive and it ain't easy. So as not to bore those who don't want to make their own wheels (or other synth parts), I've put together a separate page detailing the mold making and resin casting process at this link

MOLDS
Top & Bottom Platinum Base Silicon Rubber Molds

Alternative Wheels
Pictured below are four methods I used to replace the W‑30 jog wheels and rotary encoders with Solid Aluminum, Eagle "Stealth", Boss‑style, and polymeric resin DIY wheels. Most have a set‑screw so attaching them to the rotary encoder flatted shaft ensures they won't fall off or wobble. Just like any mods done on the W‑30, it's a real bitch because for wheels with a set‑screw, the sampler needs to be completely taken apart... as in ! Completely ! The good news is that the Boss‑style wheels are very inexpensive and look great. The downside is that some wheels lack the tiny 4mm bump on top which helps to speed up wheel turns. The solid aluminum wheel is an exception. It has a nice indentation for your index finger which makes it a "real" jog wheel. A few of the alternate wheels somewhat take away the sleek look of the original sampler design. Another bummer about these is that some are not tall enough so new rotary encoders with longer flatted shafts need to be installed. Don't panic! These replacement rotary encoders are dirt cheap. With the exception of disassembling the case, adding these replacement encoders and alternative wheels is quite easy. I decided to go with the Solid Aluminum wheels because they closely match the original wheels, they look awesome and they have the indentation. The Eagle "Stealth" wheel has an advantage over the others because the small diameter knob speeds up cursor movement and value changes. No matter which wheel you choose, all of these new rotary encoders have a great response and a nice tactile feel as compared to the original encoders, probably due to being worn‑out from old age. Another nice feature is these new encoders have a solid aluminum shaft... not plastic like the original factory encoders




W‑30 Rotary Encoder Replacements
I was relieved to find that replacement encoders for the W‑30 are very inexpensive at less than $3 for a pair. When was the last time you saw the price of an encoder was less than the price of the wheel on top? That's the kind of DIY price I really like! There's no need to pay $25 to the vultures on eBay. W‑30 replacement encoders can be found at Mouser, Digi-Key, Farnel and other electronic parts vendors. There are several encoders in the same series so make sure you get the right one. Some have switches, some don't have the required bushing with threaded nut, some are the wrong Pulses Per Rotation (PPR) and some have a really long shaft. However, having a really long shaft doesn't sound like much of a problem, does it? ;^)

Here's a breakdown of some of the different rotary encoder replacements as they match up with original and alternate wheels


ENCODER

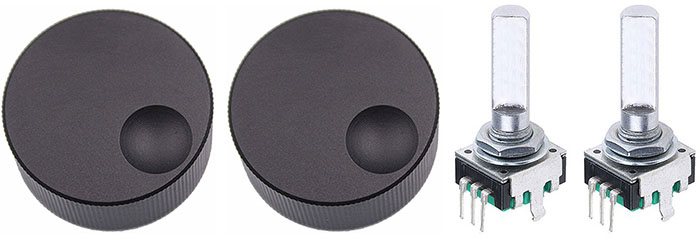

 Rotary Encoder For Solid Aluminum Wheel
 Bourns P/N: PEC11R-4225F-N0024
         25mm Flatted Shaft
         24 Detents
         24 PPR
         Panel mount bushing with threaded nut

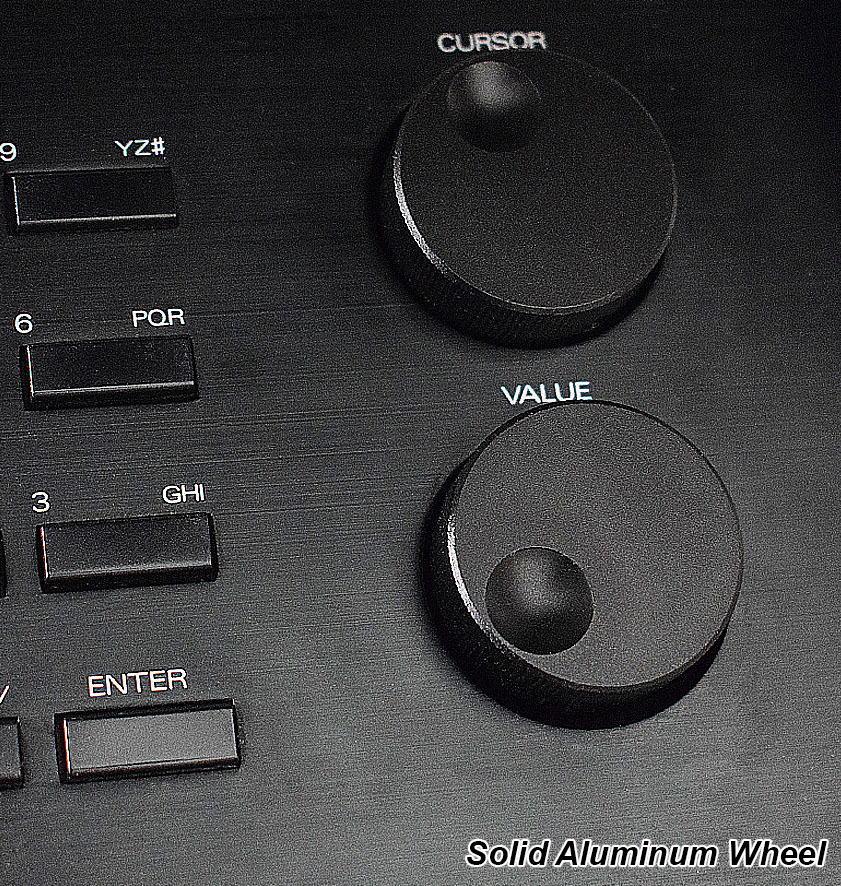

Notes: This black anodized solid aluminum CNC machined wheel is the Ferrari of all other W‑30 jog wheels. If you love your W‑30 as much as I do, you know this one belongs on it. It has an indentation for your index finger which helps to speed up wheel movement and it's a real joy to use. This one is the same height and width as the original jog wheel, minus the D‑shaft stem. I use these on my W‑30 because they have a much better feel than the originals. Nice, solid and HEAVY. This wheel has a 1.5mm hex set‑screw which ensures that it won't wobble and it won't fall off (A hex set‑screw wrench was included in the box). You can find these wheels from various vendors on eBay anywhere from $5 to $8 (USD). Search for "32mm 13mm Black Aluminum Knob"

When installing this encoder, You will need to use (2) metal washers as mentioned in the installation notes below. This is optional if you want it to sit slightly higher than the original wheel. Either way looks great. The wiring for this encoder is the same as all the other Bourns encoders shown on this page.
Pins A, B & C need to be wired differently from the original Roland encoder as shown in the wiring diagram below in Figure 1

        ENCODER     ENCODER

(
click to see what it looks like on the W‑30)

PROS
   ⚆ Indentation for speedy wheel turning
   ⚆ It has a set‑screw which prevents wobble
   ⚆ Solid Aluminum = Solid Feel + Durability
   ⚆ Looks much better than the original wheel!

CONS
   ⚆ A new encoder needs to be installed
   ⚆ Pricey $$$!
     S-50_S-550_ZONE



ENCODER

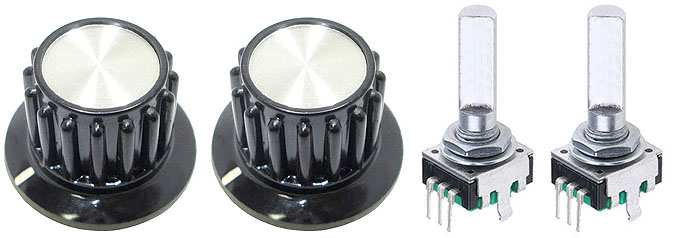

 Rotary Encoder For Eagle "Stealth" Wheel
 Bourns P/N: PEC11R-4225F-N0024
         25mm Flatted Shaft
         24 Detents
         24 PPR
         Panel mount bushing with threaded nut

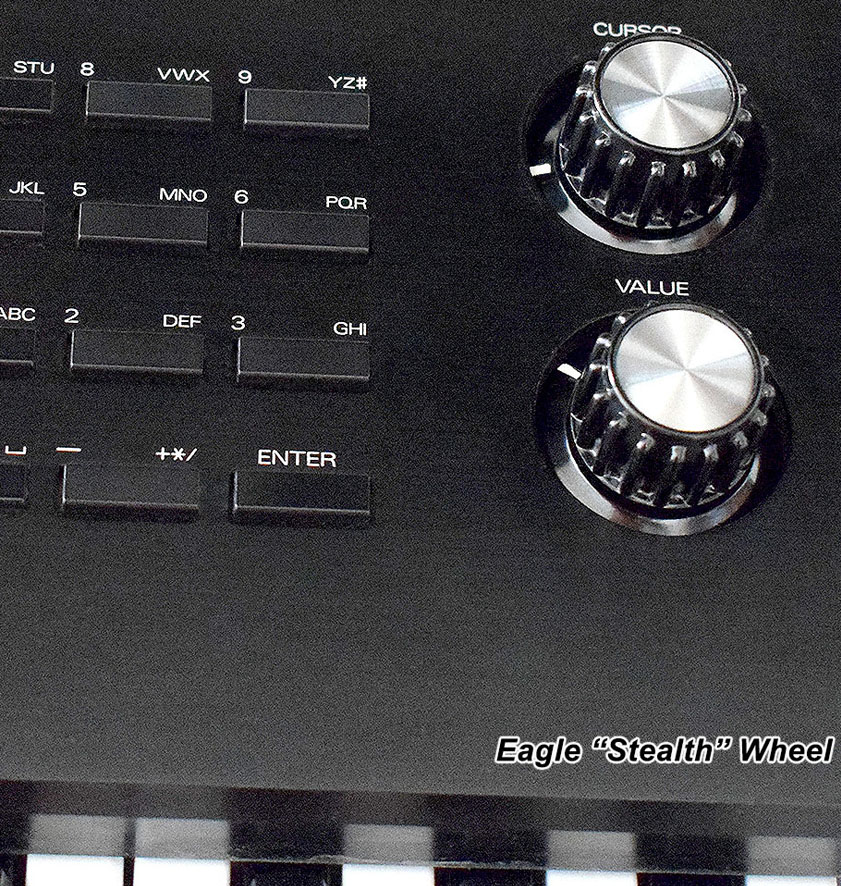

Notes: The "Stealth" Wheel P/N: 45KN025‑GRX is a great alternative to the original jog wheel because it has a smaller diameter knob. This makes it easier to grip and also enables faster wheel turns. The top part of the knob is 24mm and the skirt is 32mm. Using the encoder shown here, it sits below the top of the case and looks kind of funky because there is a small gap above it. Even though it looks a little "off", It still has a cool "stealthy" look to it because it's recessed. This wheel has a set‑screw which ensures that it won't wobble and it won't fall off. When installing this encoder, do not use a metal washer as mentioned in the installation notes below. The wiring for this encoder is the same as all the other Bourns encoders shown on this page. Pins A, B & C need to be wired differently from the original Roland encoder as shown in the wiring diagram below in Figure 1


ENCODER      ENCODER

(
click to see what it looks like on the W‑30)

PROS
   ⚆ Smaller diameter for speedy value changes
   ⚆ It has a set‑screw which prevents wobble
   ⚆ Made of durable phenolic resin

CONS
   ⚆ A new encoder needs to be installed
   ⚆ Looks a little funky since it's below the case top
   ⚆ No 4mm bump on top like the original wheels

     S-50_S-550_ZONE



ENCODER

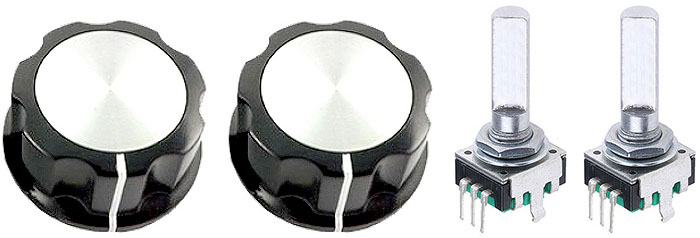

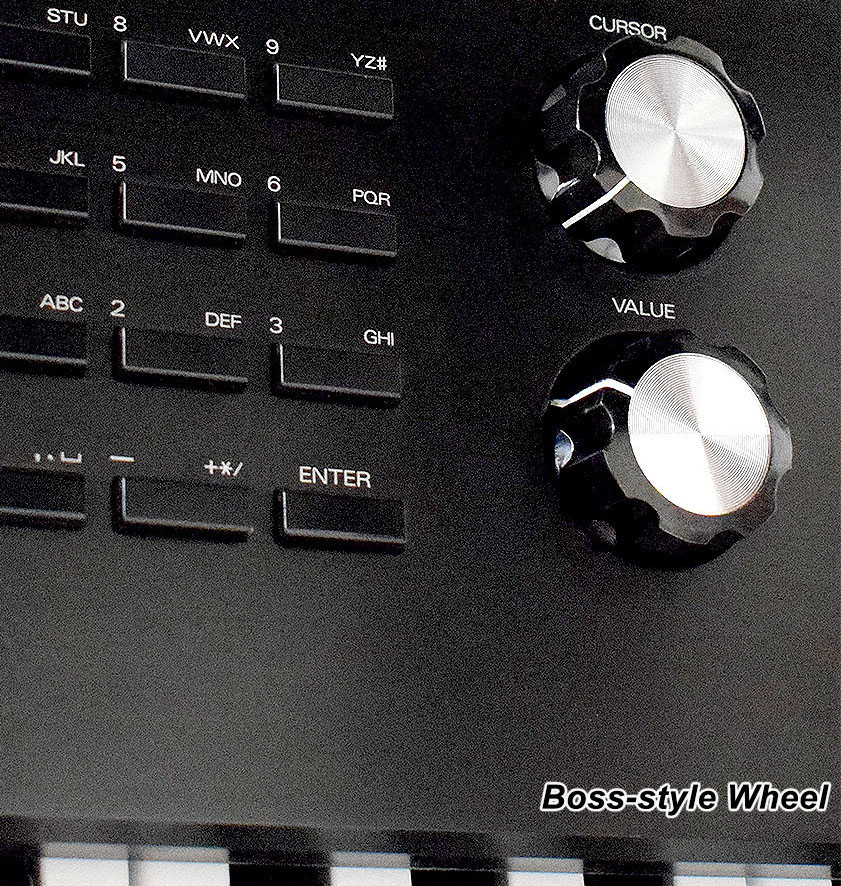

 Rotary Encoder For Boss‑style Wheel
 Bourns P/N: PEC11R-4225F-N0024
         25mm Flatted Shaft
         24 Detents
         24 PPR
         Panel mount bushing with threaded nut


Notes: The Tayda Boss‑style Wheel SKU: A-2908 is a nice alternative wheel because it has a set‑screw which ensures that it won't wobble and it won't fall off. This wheel is also recessed below the top of the case but it isn't nearly as obvious as the Eagle "Stealth" Wheel. Even though this is the least expensive wheel of the bunch, it still looks very sharp and has a solid feel to it because it's made of Bakelite™ plastic. Tayda sells two sizes of this model so ensure you get the one for use with a 6mm shaft. Do No Not use a metal washer as mentioned in the installation notes below. The wiring for this encoder is the same as all the other Bourns encoders shown on this page. Pins A, B & C need to be wired differently from the original Roland encoder as shown in the wiring diagram below in Figure 1


        ENCODER      ENCODER

(
click to see what it looks like on the W‑30)

PROS
   ⚆ Very inexpensive!
   ⚆ Has a set‑screw which prevents wobble
   ⚆ Made of durable Bakelite™ plastic and looks great

CONS
   ⚆ A new encoder needs to be installed
   ⚆ No 4mm bump on top like the original wheels
     S-50_S-550_ZONE



ENCODER

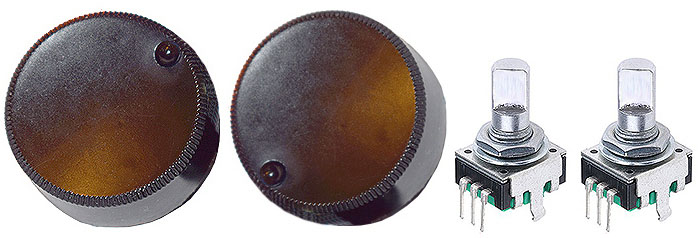

 Rotary Encoder For Original Or DIY Wheel
 Bourns P/N: PEC11R-4215F-N0024
         15mm Flatted Shaft
         24 Detents
         24 PPR
         Panel mount bushing with threaded nut

Notes: When installing this encoder, You will need to use (1) metal washer as mentioned in the installation notes below. This ensures the height of the original Roland jog wheel is the same as before. The wiring for this encoder is the same as all the other Bourns encoders shown on this page. Pins A, B & C need to be wired differently from the original Roland encoder as shown in the wiring diagram below in Figure 1


ENCODER     ENCODER

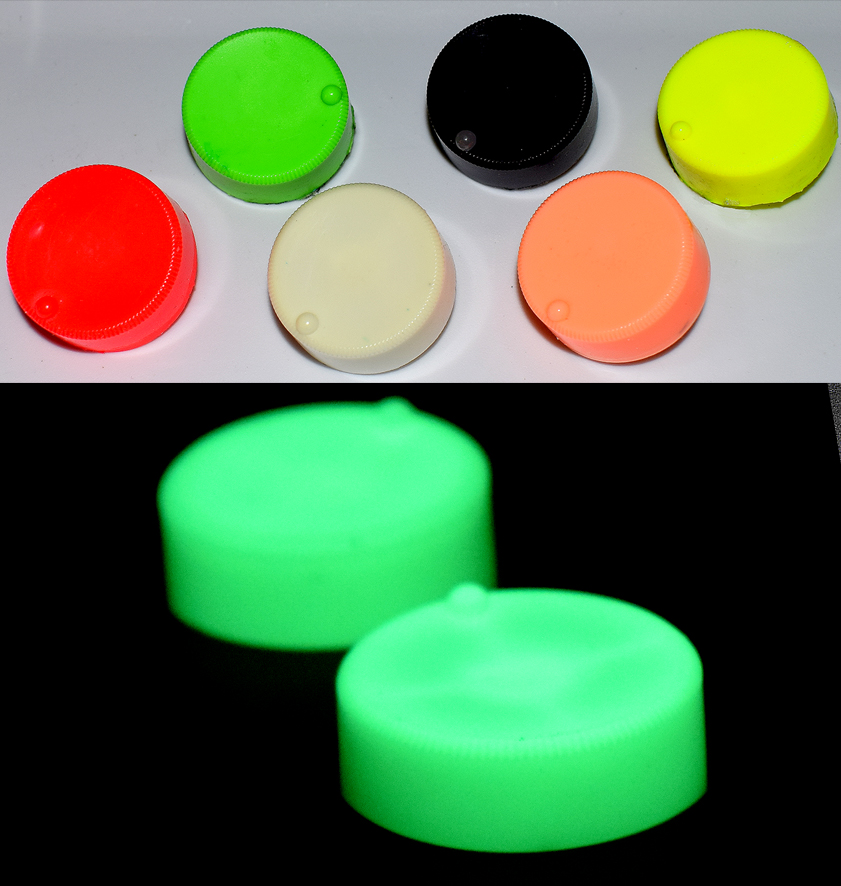

Top: Thai Stick / Black / FloYellow
Middle: Hot Pink / White / FloOrange
Bottom: Glow‑In‑The‑Dark Phosphorescent Green
(click for larger image)

PROS
   ⚆ Looks identical to the original wheels
   ⚆ Available in crazy colors
   ⚆ Encoder replacement optional, but recommended

CONS
   ⚆ Need to be handmade one‑at‑a‑time. Pricey $$$!
   ⚆ No set‑screw so it wobbles just like the original :^(

     S-50_S-550_ZONE
  White  Black  FloOrange  FloYellow  Hot Pink  Ocean Blue  Thai Stick  Deep Purple
 ⚈  Glow‑In‑The‑Dark Phosphorescent Green  ⚈
 ⚈  Phosphorescent Green wheels will glow only in a darkened room. The wheels will not glow at all in a lighted room and will appear White with a slight hint of Green. The Phosphorescent grains encased in the resin need to be charged up using a flashlight or some other bright light source before you go on stage. Of course, it looks killer under a blacklight day or night. Phosphorescent Green wheels are priced considerably higher because an expensive phosphorescent powder is added to the resin before pouring and a second resin pour is needed to enhance the glow qualities. Creating these wheels requires a lot of extra time and materials
* I have  0  Polymeric Resin wheels in stock. I don't plan on making or selling any more because they are cost prohibitive





Installation
  • To use replacement encoders with the original Roland jog wheel, place a 2mm tall metal washer on the bottom side of the mounting plate to ensure the height of the jog wheel is the same as before

  • If you are using the solid aluminum jog wheels you will need two 2mm tall metal washers for each encoder

  • The A, B and C pins on the original encoders are WIRED DIFFERENTLY from the new Bourns encoders. Unsolder the wire assembly from the original jog wheels and connect it using the reference images below in Figure 1 and Figure 3. If you bend the pins flat before soldering as I did, use care because they can easily break off

  • When attaching the encoders to the mounting plate, try to center the shaft as close to the middle as possible before tightening the bushing nut. Before closing the case, make sure the wheels don't rub against the side of the case. You may need to maneuver the mounting board a couple times to find the sweet spot

Hopefully, Roland used the same color wiring harness on all W‑30's!!! If not, you can cross reference by using the CN11 connector shown below. In retrospect, I think attaching the encoder pins and wires onto a scrap of leftover PCB might have made my soldering job a little easier. Good luck and remember to take precautions against static electricity when you open up your W‑30! Spare parts are nearly impossible to find these days!

S-50_S-550_ZONE
Figure 1 (click for larger image)



S-50_S-550_ZONE
Figure 2 (click for larger image)
S-50_S-550_ZONE
Figure 3 (click for larger image)



Miscellaneous Info

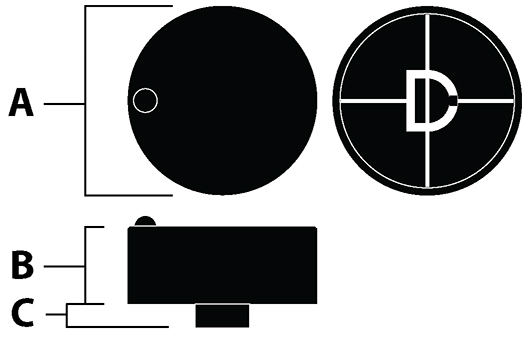

Original Roland Jog Wheel
           Roland P/N: 22483186
           Dimensions
                    ⚆ 32mm  -  A
                    ⚆ 13mm  -  B
                    ⚆   4mm  -  C

Original Roland Encoder
          ⚈ Roland P/N: 22483186
          Manufacturer Silkscreen P/N: M24B9D1



S-50_S-550_ZONE

If you bought your W‑30 used, you may not know that there was originally a felt disc installed under each jog wheel. These felt discs may have been lost over time or disintegrated with age. Their main purpose is to mask the bright metal plate underneath so the gap between the wheel and the case looks black and it also keeps out dust. Each disc has a 41mm diameter and is wafer thin

Here's a look at the inside of an original W‑30 encoder. Note that pins A, B and C do not follow the same pin assignments as all the other encoders shown on this webpage

S-50_S-550_ZONE
Original W-30 Encoder:   PPR = 24   Detents = 24   Shaft = 25 mm (From Top To Base)


S-50_S-550_ZONE
Bourns Replacement Encoder:   PPR = 24   Detents = 24   Shaft = 21 mm (From Top To Base)




An excellent $2 encoder DIY replacement for the Super JX‑10 and MKS‑70 is at supersynthprojects.com

Another $2 encoder DIY for the Alpha Juno‑1, Alpha Juno‑2, HS‑10, HS‑80 and S‑10 synths is available at this link

If you have questions about other Roland synth and sampler encoder equivalents or replacements, check this link
